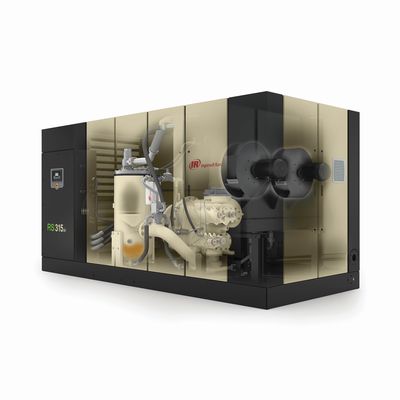

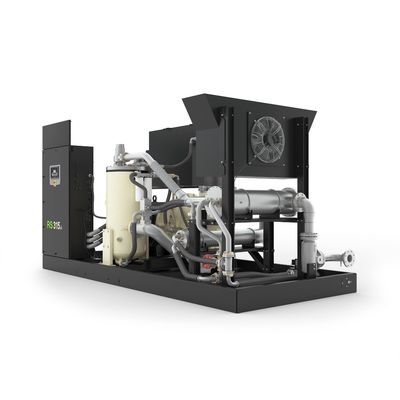

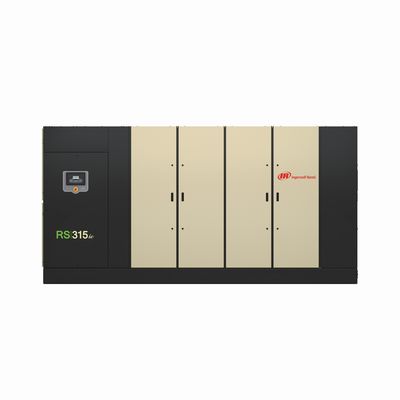

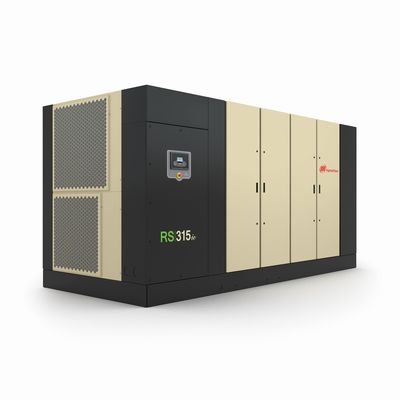

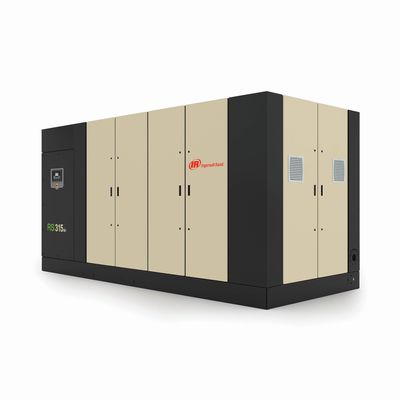

Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors

Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors

Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors
Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors

Large Image :  Next Generation R Series 315 - 355 kW Oil Flooded Rotary Screw Compressors Get Best Price

Product Details:
Brand Name: Ingersoll Rand
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: as Ingersoll Rand standard
Delivery Time: 7-30 days
Payment Terms: T/T, Western Union
Supply Ability: 100set/ month
Detailed Product Description

Features:



  • State-of-the-art airend delivers as much as 8% improved efficiency and 13% greater airflow capacity; two stage airend available for even greater efficiency and reduced bearing load to extend life.
  • NEW optional variable speed drive (VSD) further decreases energy demands.
  • PAC™ Protection, V-Shield™ technology and free-floating cooling system help maximise uptime.
  • Xe-Series controller with intuitive, high-resolution color display offers remote access with any common, current web browser.
  • Comprehensive CARE service programs ensure proper maintenance, a longer product life and extend your warranty.
  • Air-cooled and water-cooled options to best match your operating environment.
  • Enhanced serviceability ensures increased uptime with features such as two-stage filtration, easy maintenance and Ingersoll Rand extended life, premium grade coolant.
  • Harsh environment options for high and low ambient temperature as well as outdoor operation.
  • Intelligent Uptime: Integrated with Helix™ Connected Platform, a state-of-the-art system that gives you real-time insights and data to keep your compressor operating at peak performance and reduce the risk of downtime.





Model Specifications(Technical Data):




MODEL
MAX PRESSURE (BARG)
MAX PRESSURE (PSIG)
NOMINAL POWER (KW)
CAPACITY (FAD)* (M3/MIN)
CAPACITY (FAD)* (CFM)
DIMENSIONS (L) MM
DIMENSIONS (W) MM
DIMENSIONS (H) MM
DIMENSIONS (L) IN
DIMENSIONS (W) IN
DIMENSIONS (H) IN
WEIGHT (KG)
WEIGHT (LB)
RS315IE-A110
7.5
110
315
65
2295
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS315IE-A125
8.5
125
315
63
2225
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS315IE-A145
10
145
315
59
2084
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS315IE-A200
14
200
315
49
1730
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS355IE-A110
7.5
110
355
71
2507
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS355IE-A125
8.5
125
355
69
2437
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS355IE-A145
10
145
355
65
2295
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS355IE-A200
14
200
355
52
1836
5000
2150
2505
196.9
84.6
98.6
8760
19272
RS315IE-W110
7.5
110
315
65
2295
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS315IE-W125
8.5
125
315
63
2225
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS315IE-W145
10
145
315
59
2084
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS315IE-W200
14
200
315
49
1730
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS355IE-W110
7.5
110
355
71
2507
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS355IE-W125
8.5
125
355
70
2472
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS355IE-W145
10
145
355
65
2295
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS355IE-W200
14
200
355
52
1836
5000
2150
2505
196.9
84.6
98.6
8670
19074
RS315ne-A145
7-10
100-145
315
18.3-64.4
647-2274
5000
2150
2505
196.9
84.6
98.6
9210
20262
RS355ne-A145
7-10
100-145
355
18.3-70.0
647-2473
5000
2150
2505
196.9
84.6
98.6
9210
20262
RS315ne-W145
7-10
100-145
315
18.3-64.4
647-2274
5000
2150
2505
196.9
84.6
98.6
9120
20064
RS355ne-W145
7-10
100-145
355
18.3-70.0
647-2473
5000
2150
2505
196.9
84.6
98.6
9120
20064
