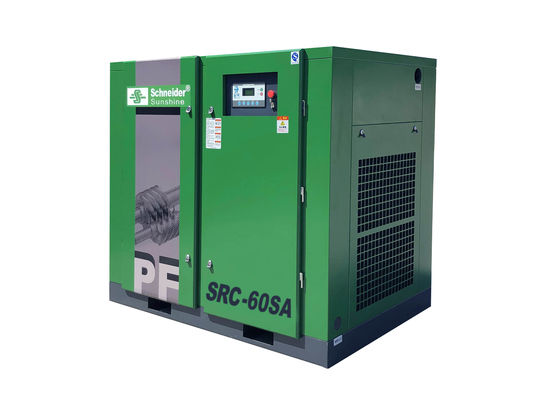

380V 50HZ Two Stage Screw Air Compressor , Energy Saving 2 Stage Screw Compressor

5.8~8m³/min Two Stage Screw Air Compressor Energy Saving 100 - 160KW 45KW Air Cooling

⊙ Twin-screw air compressor introduced mainframe

Spray
All are screw-type compressor with a modem environmental-protection paint. Its surface machining so many years after the use of castings can effectively avoid corrosion.


Shell
The modem word processing centers under the control of the technical specifications for testing. ’The most advanced machinery and the use of modem technology and constant monitoring. It applied to all processing operations. For us on the Company’s compressor quality certification of the commitments made by providing good protection.
Shaft sealing device
Equipped with dual wheels metal framework amine fluoride rubber ring to withstand certain pressures. Formation of the shaft seal can be lubricating device. Bush axis of the company’s exclusive use my special processing technology. A perfect sealing performance and long life.


Rotor
Each screw compressor is the heart of the compressor mainframe. From the latest CNC machine operators of multi-level screw fully automated manufacturing process and materials used by the higher minimum guarantee its tolerance. Reliability stronger. Ground processing and computer control of the multi-step rotor combine. 100% of the rotor to ensure the accuracy of profile.


Bearing
To ensure the speed and load bearing capacity. Using screw compressor bearing capacity of a very high-quality bearings. Guaranteed longer bearing life.

⊙ Schematics

⊙ Type air compressor pause

◆ Type selection of working pressure (exhaust pressure)
     When the user is ready to purchase an air compressor, the first thing is to determine the working pressure needed at the gas end, plus a margin of 1-2 bars, and then select the pressure of the air compressor. (This margin is to consider the pressure loss from the installation site of the air compressor to the actual pipeline of the gas end, and to consider the pressure margin between 1-2 bars according to the length of the distance). Of course, the size of pipeline diameter and the number of turning points are also factors affecting pressure loss, the larger the pipeline diameter and the fewer turning points, the smaller the pressure loss; conversely, the greater the pressure loss.
     Therefore, when the distance between the air compressor and the gas-end pipeline is too far, the diameter of the main pipeline should be enlarged appropriately. If the environmental conditions meet the installation requirements of the air compressor and the working conditions permit, it can be installed near the gas terminal.


⊙ Features:

    › Remote start/stop control.

    › 20 entries alarm/trip history.

    › Simple and intelligent interface for ease of operation.

    › Password protection against unauthorized & manipulation.

    › Recording all interruption/malfunction data for ease of maintenance.

    › Automatic start/stop function. Automatic re- start following power outage.

    › Real time compressor status displayed with LCD display And LED indicator.

    › MODBUS conventional communication with capability of connecting to all type of central monitoring system.

    › Warning for consumable product replacement. (Detail record for periodical replacement and maintenance information)

    › Optional function: Capacity of sequencer control Mode for maximum 16 machines. (External sequencer is not necessary)
