Product Details:
Payment & Shipping Terms:
|
| Cooling Style: | Air Cooling Or Water Cooling | Air Capacity: | 4.42~20.87m³/min |
|---|---|---|---|
| Discharge Pressure: | 6~8bar | Motor Power: | 110kw |
| Total Weight: | 1800kg | Dimension (L*W*H): | 2000mm*1400mm*1650mm |

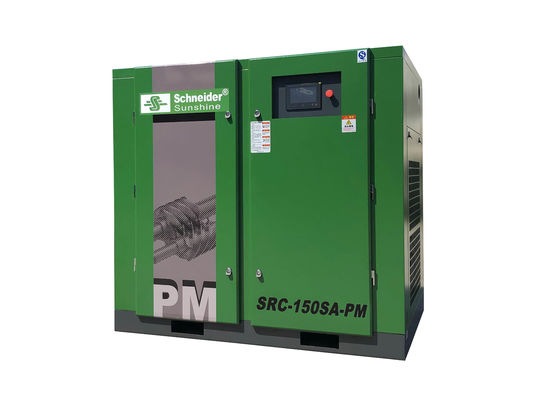

110kw VFD Air Compressor 4.42~20.87m³/min 150SA-PM Air Cooling Water Cooling
Features:
· Excellent performance
· Minimum maintenance
· High efficiency
⊙ Rare Earth Permanent Magnet Frequency Conversion Energy-saving Air Compressor is a kind of air compressor with dual frequency conversion speed regulation function.
⊙ why choose us
1. One-in-one axle structure
2. Approximate noiseless running
3. High Efficiency Permanent Magnet Motor
4. Higher reliability
5. Easier maintenance
6. Higher energy efficiency
⊙ You know the electricity cost of the air compressor:
Air compressor is a huge energy source. Generally speaking, air compressor equipment accounts for about 25% of the total power consumption of the factory.
The energy-saving improvement of air compressor can play a great role in reducing the overall energy consumption of the factory.
Permanent magnet frequency converter air compressor can save at least 26% energy compared with traditional air compressor.
Product Advantage
- High quality, efficiency, stable, energy-saving.
- Variable frequency starting, Smaller starting current, smaller impact on the machine.
- Particular design of the structure, reliable and antinoise.
- Conform to CE,ISO9001 and energy saving certification, etc.
⊙ Specification parameters
| Specifacation | Cooling Style | Pressure Range (bar) |
Minimum Exhaust Volume (m³/min) |
Rated exhaust capacity (m³/min) |
Maximum Exhaust Volume (m³/min) |
Motor Power (kw) |
Total Weight (kg) |
Dimension (L*W*H) (mm) |
| SRC-25SA-PM | Air cooling | 6~8 | 0.84 | 3.08 | 3.23 | 18.5 | 750 | 1030*887*1200 |
| SRC-30SA-PM | Air cooling | 6~8 | 0.84 | 3.76 | 3.95 | 22 | 750 | 1030*887*1200 |
| SRC-40SA-PM | Air cooling | 6~8 | 0.84 | 4.84 | 5.08 | 30 | 750 | 1030*887*1200 |
| SRC-50SA-PM | Air cooling | 6~8 | 1.47 | 6.32 | 6.64 | 37 | 760 | 1200*1098*1420 |
| SRC-60SA-PM | Air cooling | 6~8 | 1.47 | 7.53 | 7.91 | 45 | 920 | 1200*1098*1420 |
| SRC-75SA-PM | Air cooling | 6~8 | 2.30 | 9.36 | 9.83 | 55 | 1100 | 1500*1150*1550 |
| SRC-100SA-PM | Air cooling | 6~8 | 2.30 | 12.10 | 12.71 | 75 | 1150 | 1500*1150*1550 |
| SRC-125SA(W)-PM | Air cooling Water Cooling |
6~8 | 3.01 | 14.95 | 15.70 | 90 | 1700 | 2000*1400**1650 |
| SRC-150SA(W)-PM | Air cooling Water Cooling |
6~8 | 4.42 | 19.88 | 20.87 | 110 | 1800 | 2000*1400**1650 |
| SRC-185SA(W)-PM | Air cooling Water Cooling |
6~8 | 5.40 | 22.74 | 23.88 | 132 | 1850 | 2000*1400**1650 |
| SRC-225SA(W)-PM | Air cooling Water Cooling |
6~8 | 5.91 | 27.00 | 28.35 | 160 | 1950 | 2000*1400**1650 |
