Light Weight Diesel Powered Portable Air Compressor Good Dynamic Balance

Good quality Oil Free Screw Air Compressor for sales
Good quality Oil Free Screw Air Compressor for sales
Your screw air compressors sell well in our country,and thanks for your support in time and quickly reply!

—— Mr.Kerry Robinson

I like your compressor ,it is strong and reliable.

—— Tom

I'm Online Chat Now

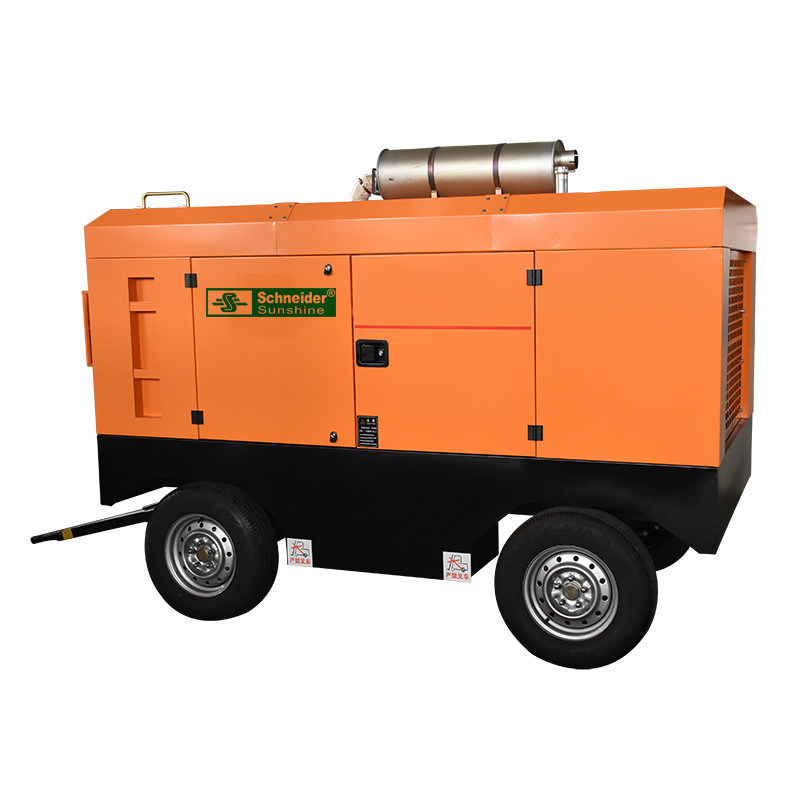

Light Weight Diesel Powered Portable Air Compressor Good Dynamic Balance

China Light Weight Diesel Powered Portable Air Compressor Good Dynamic Balance supplier

Large Image :  Light Weight Diesel Powered Portable Air Compressor Good Dynamic Balance

Product Details:

Place of Origin: Shanghai, China
Brand Name: Schneider Sunshine
Certification: ISO9001
Model Number: SRC-10/13CYSA

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Wooden case, Carton
Delivery Time: In 30 days after get the value
Payment Terms: T/T, L/C, D/P
Supply Ability: 300PCS/month
Contact Now
Detailed Product Description
Air Capacity: 10m³/min Discharge Pressure: 13bar
Motor Power: 110kw Speed: 2200r/min
Total Weight: 2600kg Dimension (L*W*H): 3600mm*1960mm*1800mm

110KW Portable Screw Air Compressor 10m³/min 13bar


Competitive Advantage:


1: According to the special field working conditions, adding the mobile device system, run the machine with more conveniently.

2: The shell design adopts the side air intake and side air exhaust, make the cool air and hot air separated.

3: The top of the machine sealed with high efficiency. separates from the top of the machine, sealing with high efficiency.


◆ Characteristics of Mobile Screw Air Compressor

        According to the different powers, the famous engine is carefully matched to achieve the best combination of performance; ultra-low vibration technology, unique noise control system makes noise smaller and lower; simple operation, clear operation state, convenient maintenance, fast.
       1. High reliability: Compressor has few parts and no vulnerable parts, so it runs reliably and has a long service life. The interval of overhaul can reach 40,000 to 80,000 hours.
       2. Easy operation and maintenance: high degree of automation, operators do not need to undergo long professional training, can achieve unattended operation;
       3. Good dynamic balance: without unbalanced inertia force, it can run smoothly at high speed and without foundation. It is especially suitable for use as a mobile compressor with small volume, light weight and less floor area.
       4. Strong adaptability: with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, and can maintain high efficiency in a wide range of speed.

◆ Application Field of Air Compressor
Widely used in highway, railway, mining, water conservancy, shipbuilding, urban construction, energy, military and other industries


      1. power transmission engine
      ◆ No any intermedias, no nergy loss.
      ◆ Bigger rotary screwers, higher efficiency and more energy-saving
      ◆ No belt, no troubles caused by belts such as power imbalance, heat, fragile, and not easy to change.
      ◆ Directly driven by motor through jaw resilient coupling,which leads to power balance, lower shocking, lower maintenance cost.
      2. Centrigugal fan with External rotors
Double centrifugal fans with compact,high efficient, more CFM and enery-saving,design.
Adopt oil-gas seperator with element core built in to ensure oil content less than 3ppm.
     ◆ new designed air inlet system which has less noise,energy-saving and easy to maintenance.


Specification parameters

Specifacation Air Capacity
Discharge Pressure
Type of Diesel Engine Motor Power
Total Weight
SRC-5.2/7CYSA 5.2 7 YCD4B22G-G1 46 2200 1500 2960*1475*1425
SRC-7.5/7CYSA 7.5 7 YC4D80-K10 58 2400 1800 3400*1785*1700
SRC-10/7CYSA 10 7 YC4B105Z-711 75 2200 1800 3600*1800*1700
SRC-10/10CYSA 10 10 4BTA3.9-C125 93 2200 2200 3600*1960*1800
SRC-12/7CYSA 12 7 4BTA3.9-C125 93 2200 2200 3600*1960*1800
SRC-12/10CYSA 12 10 YC6B150Z-K20 110 2200 2600 3600*1960*1800
SRC-10/13CYSA 10 13 YC6B150Z-K20 110 2200 2600 3600*1960*1800
SRC-12/13CYSA 12 13 6BTA5.9-C180 132 2500 3300 3480*1700*2240
SRC-15/10CYSA 15 10 6BTA5.9-C180 132 2200 3500 3480*1700*2240
SRC-17/8CYSA 17 8 6BTA5.9-C180 132 2500 3500 3480*1700*2240
SRC-15/13CYSA 15 13 WD415.23 160 2200 3500 3300*1750*2500
SRC-22/8CYSA 22 8 6TA8.3-C260 194 2200 5000 4000*1900*2330
SRC-21/13CYSA 21 13 6LTAA8.9-C325 239 2200 5000 4300*2000*2800


⊙ why choose us

Light Weight Diesel Powered Portable Air Compressor Good Dynamic BalanceLight Weight Diesel Powered Portable Air Compressor Good Dynamic Balance


      From the two pictures above, we can find the electric consumption of air compressor is about a quarter of the whole factory, and the electric charge is also the major cost in the air compressor total cost, far more than the Equipment Investment and Maintenance Cost. So before you choose one compressor, electric consumption should be considered first. Schneider-Sunshine screw air compressor adopts Germany DOS.DS technology. All the compressors are direct connection, more balance and stable in running. Innovative design with a copper motor makes the power loss lessened by 40%.



General Construction
     For the demolition for building and road maintenance, compressed air is essential on the job site to power the tools. schneider-sunshine offers compressor in a wide size of range to fit air flow and pressure requirements of the job - all designed to be robust and reliable to meet the needs of tough, demanding construction environments.



    On construction sites, schneider-sunshine portable air compressors are typically used to power hand-held pneumatic breakers, jack hammers, air guns, shotcrete equipment, pneumatic wrenches, nut runners and more.

They are commonly used in applications such as building sites, road maintenance, bridges, tunnels, concrete pumping and shotcreting.


After sale service:
     Schneider-sunshine promises to provide technical support for all the compressor manufactured. Giving guid for installation,operation and maintenance. For periodically maintenance of compressor , we suggest to use WINDBELL original spare parts in order to meet original specifications. Please contact us if you need any help for using or maitenance of the portable air compressor.


      We believe that without an advanced quality management system you cannot make high quality products. With ISO9001 and ISO14001 certifications, the company aims to be a pioneer in offering consumers efficient, energy-saving, and environment-friendly solutions in the application of air compressor. Based on its R&D output, the company has successfully applied its solutions to the field of mining, tunneling, outdoor construction and its technology also facilitates the production of medical oxygen generators and textile equipment. The mining air compressors are sold to Southeast Asia, Central Asia, Middle East, Africa, and America...


Light Weight Diesel Powered Portable Air Compressor Good Dynamic BalanceLight Weight Diesel Powered Portable Air Compressor Good Dynamic Balance
