IP66 250KW Rotary Screw Compressor , Hybrid Oil Injected Screw Air Compressor

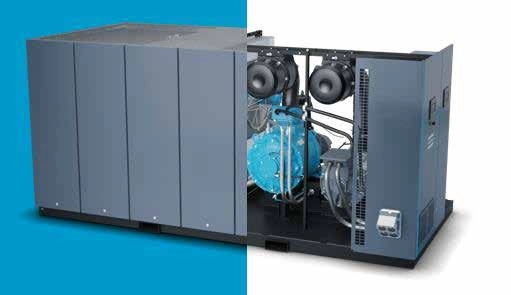

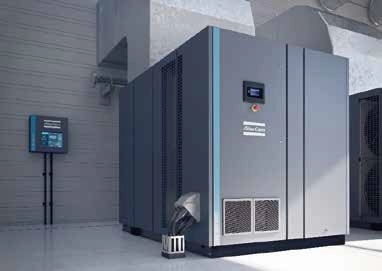

Newest Technology Compressor Hybrid Oil-injected Rotary Screw Compressor Atlas Copco GA200HYBRID⁺~GA250HYBRID⁺

High reliability, low operating cost
The most direct way to increase profit margins is to reduce operating expenses. It is well known that energy costs account for
80% of the entire life cycle cost of a compressor. Atlas copco GA+ series compressor
The machine is equipped with an intelligent fuel injection system and an IE4/IE5 motor, which not only reduces the operating cost of the customer, but also allows the machine to run stably under severe working conditions.

Efficient
GA+ series compressor adopts intelligent oil injection technology, IE4/IE5 oil-cooled motor; motor and machine head
One-piece design, protection level up to IP66. Efficient transmission system, with large margin design
designed cooling system, low pressure drop piping system and the precise Elektronikon® Touch
The control system can greatly reduce the comprehensive operation energy consumption of the compressor.

Reliable
The protection level of the transmission system of the GA+ series compressor reaches IP66, preventing dust and
The erosion of water vapor allows the unit to operate stably under harsh working conditions (up to 55°C
operating at ambient temperature).

Easy maintenance
All the parts that need regular maintenance are fully considered the convenience of operation, greatly reducing the
Short maintenance time. The unique box plate design makes all zeros inside the unit
Parts are all within easy reach. At the same time, the design of each component also fully considers its maintainability
Compared with the traditional design, the average maintenance time is shortened by more than half.

Dual set-point and automatic stop

Most production processes create fluctuating levels of demand which, in turn, can create energy waste in low use periods. Using
the Elektronikon ® unit controller, you can manually or automatically switch between two difgerent setpoints to optimize energy use and
reduce costs at low use times. In addition, the sophisticated algorithm runs the drive motor only when needed. As the desired setpoint is maintained while the drive motor’s run time is minimized, energy consumption is kept to a minimum.
Legend
A = Power consumption
B = Time
C = Energy Saving

Components designed for efgiciency

• SmartInjection provides exact amount of oil required to element ensuring it always works at peak efgiciency.
• High efgiciency IE4 (Fixed Speed) and IE5 (VSD+) motor.
• Integrated energy recovery system recovers up to 78% of energy from integrated motor and element oil circuit.
• Dual speed or VSD fan for energy efgiciency in lower temperatures.

Lower life cycle cost
Compressed air is essential in daily industrial production, and its application fields include
Including: pneumatic tools for cutting, drilling, hammering and grinding processes;mechanism and valve; ventilation system; packaging and stacking equipment and conveyor systemsystem etc. GA+ series compressors are designed for lower life cycle cost.

Elektronikon Mk5 Touchscreen Controller
The unique control logic and algorithm of the Elektronikon® controller can be customized according to different
improve the performance of compressors and after-treatment equipment. our solution The solution can bring you many benefits, such as reducing energy consumption, reducing maintenance time time and cost. Reduce stress on your energy costs, and also on your operations

More reliable motor
The transmission system with IP66 protection level eliminates the erosion of dust and water vapor, and ensures the power
The machine can run stably even under harsh working conditions.

Ready-to-install, all-in-one model
The GA+ FF full-featured machine integrates a dryer, and the dew point of the outlet air can reach 3°C/37°F (20°C
ambient temperature).
The pipes and cables between the compressor and the dryer have been assembled at the factory, no additional
External installation work, and the compressor control panel can view and monitor the dew point temperature.

Hybrid
Atlas Copco innovatively integrates the fixed-frequency module and the variable-frequency module into a hybrid model, which is matched with our intelligent control system to more accurately match the gas demand of customers.

Advantages of hybrid models
The hybrid model contains 2 sets of independent drive chains, one set of fixed frequency drive chains and one set of variable frequency drive chains. This design has the following advantages:
• Wider frequency conversion range
• Combined operation with lower specific power
• Lower backup costs
• Higher system security

Higher flexibility
The hybrid model can be operated automatically as an inverter, or as two independent compressors, only one of which is turned on. This also means that customers can choose a smaller power compressor as a backup.

High temperature option
Ensuring reliable compressor operation in hot and humid environments:
• The maximum ambient temperature for fixed frequency machines is 55°C ( 131°F )
• The maximum ambient temperature of the inverter can reach 50°C ( 121°F )

Vibration monitoring
The SPM vibration monitoring system can monitor the vibration of the machine head and motor bearings in real time. The sensor is directly connected to the Elektronikon® controller, and the vibration value of each point can be checked in real time.
The alarm/shutdown value of the controller is set at the factory. Through this system, the failure of the transmission system can be detected in time, and preventive maintenance can be carried out, so that the compressor can run safely for a longer period of time.

Built-in dryer
The GA+ FF full-performance model integrates the dryer inside the compressor. This one-piece design not only reduces installation space, but also saves piping installation costs. Under typical operating conditions, the compressed air dew point can reach +3°C (37.4°F).

Motor Protection Options
Five temperature sensors (PT-1000) are respectively installed on the front and rear bearings of the main motor and the three-phase windings.
The temperature at each point can be viewed directly through the Elektronikon® controller, and the built-in program will protect the motor of the compressor by alarming or shutting down.
