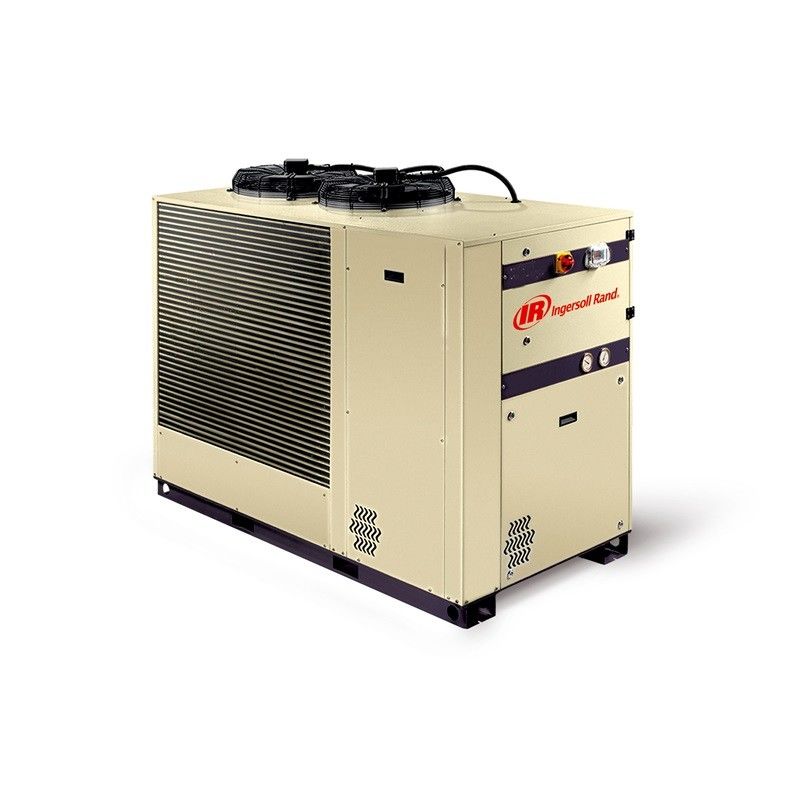

Lubricated 380V Non Cycling Refrigerated Air Dryer 102-380 M3/Min D11400IN-A

Product description :Ingersoll Rand 102-380 m3/min Non-Cycling Refrigerated Dryers D11400IN-A

Capacity Range: 102-380 m3/min (3600-13420 cfm)
Pressure Dew Point: 3°C (38°F)
ISO Class 4 Cooling Method: Air-cooled and water-cooled
Voltage: 400/3/50
Maximum Pressure: 12-14 barg (174-203 psig)
Maximum Ambient (air cooled): 46°C (115°F)
Maximum Inlet Temperature: 65°C (156°F)
Refrigerant: R-407C

Features:


• Reduced Energy Use: Efficient heat exchangers, a built-in stainless steel demister that removes all moisture and a fully adjustable programmable electronic drain valve reduce energy use and minimize air loss
• Built-in Reliability: Corrosion-resistant heat exchangers, an enhanced control-system and high-efficiency moisture-separation ensure a steady long-term supply of dry air
• Smart Control: Easy to use, advanced microprocessor control that lets you easily adjust and manage system parameters
• Superior Equipment Protection: Built-in coalescing filter stops contamination by separating water and oil from the compressed air
• Consistent Clean, Dry Air: Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity, while ensuring a consistent dew point
•

• Model	Capacity Class 5 Dew Point m3/min (scfm)	Capacity Class 4 Dew Point m3/min (scfm)	Operating Power kW	Dimensions (L x W x H) mm/in	Weight kg (lb)	Connection Air In/Out
  D6600IN-A	127 (4485)	102.7 (3627)	9.9	1940 (76) X 910 (36) X 1447 (57)	624 (1376)	DN 150
  D9000IN-A	160.5 (5668)	130.4 (4605)	11	3000 (118) X 930 (37) X 2079 (82)	1077 (2374)	DN 200
  D11400IN-A	204.1 (7208)	165.9 (5859)	14.4	3000 (118) X 930 (37) X 2079 (82)	1100 (2425)	DN 200
  D13500IN-A	261.5 (9235)	212.9 (7519)	19.8	3390 (133) X 1150 (45) X 2210 (87)	1850 (4079)	DN 250

• 1.Q: Are you a manufacturer or trading company?
  A: We are a professional Ingersoll Rand agent in China and also we produce air compressor in OEM and ODM service
  2.Q: How long is the warranty?
  A: Our officially promised warranty time is 1year from the date of delivery.
  3.Q: Do you provide 0DM/0EM or customized service?
  A: We're professional air compressor factory OEM/ODM are available based on your requirements.
  In order to support different customers. we are able to supply:
  1),reciprocating air compressors

• 2),oil-flooded air compressors

  3),oil-free air compressors

  4), centrifugal air compressors

• 4.Q: What certifications you have?
  A: We have ISO certifications.
  5.Q: What's the MOQ?
  A: The MOQ is 1pcs.
  6.Q: When will you delivery?
  A: Usually it takes 15-20 days after receiving the payment.
