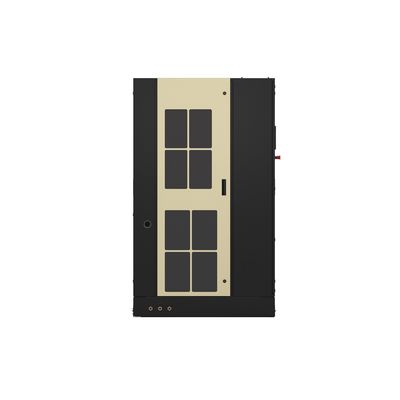

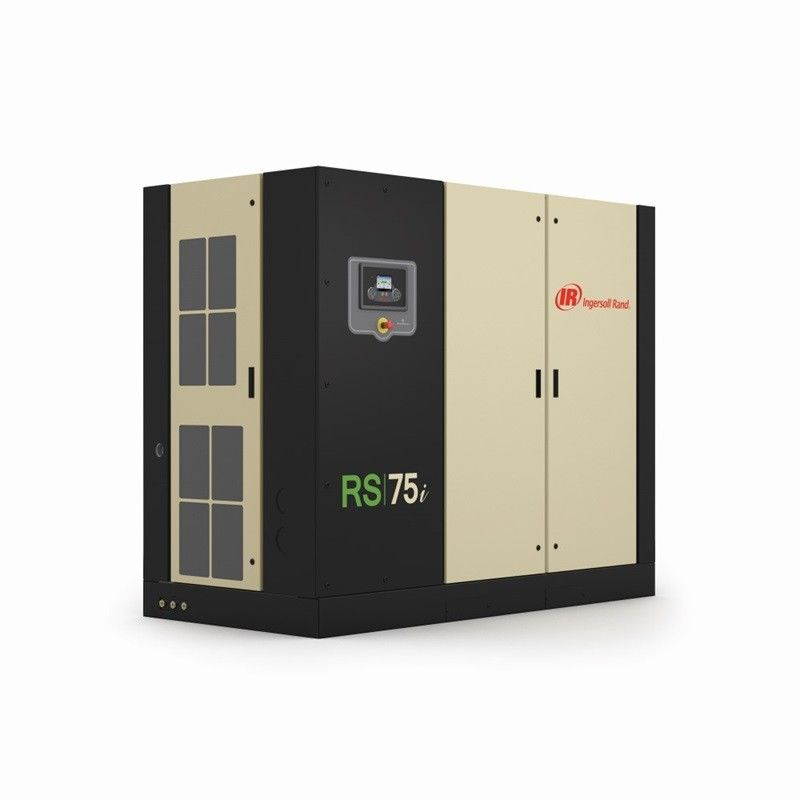

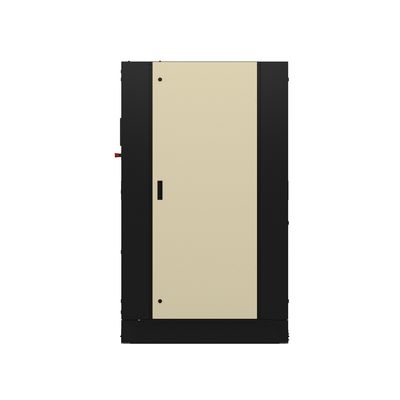

Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor

Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor

Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor
Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor

Large Image :  Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ingersoll Rand
Certification: ISO2000
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: as Ingersoll Rand standard
Delivery Time: 7-30 days
Payment Terms: T/T, Western Union
Supply Ability: 100set/ month
Detailed Product Description
Warranty: 1 Year Voltage: 380V
Condition: NEW100% Type: Screw
Lubrication Style: Lubricated Configuration: Stationary
Power Source: AC Power
High Light:

Practical Screw Type Compressor

,

Lubricated Screw Type Compressor

,

VSD Lubricated Rotary Screw Air Compressor

Products description: R Series 45 - 75 kW Oil Flooded Rotary Screw Compressors



    Ingersoll Rand works to keep you ahead of your competition with Next Generation R-Series air compressors that boost productivity, lower operating expenses and extend equipment life. And with a variable speed drive (VSD), the compressor automatically adjusts its compressed air output to achieve the highest efficiency for your operation, minimizing energy use at any load. Next Generation R-Series air compressors. The intelligence you need—to win.



Features

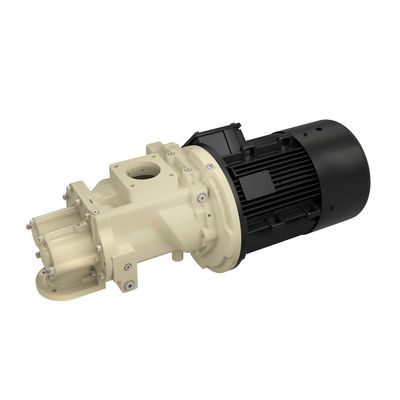

  • Improved Efficiency and Air Flow: State-of-the-art airend features optimized rotor profile that delivers up to 16% improved efficiency and 15% greater airflow capacity
  • Decreased Energy Use: IE5 Ultra Premium® efficiency motor with Hybrid Reluctance Motor (HRM) technology paired with a variable speed drive (VSD) to deliver significant energy savings
  • Remote Intelligent Control: Xe-Series controller delivers increased control functionality through an intuitive user interface and remote access with any common, current web browser
  • Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
  • Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime
  • Optional Total Air System (TAS): Clean, dry air in a single package that minimizes installation costs, space and features improved ISO air quality
  • Intelligent Uptime: Integrated with Helix™ Connected Platform, a state-of-the-art system that gives you real-time insights and data to keep your compressor operating at peak performance and reduce the risk of downtime.

Specification:



Model Max Pressure barg - 50HZ   Nominal Power kW   Capacity FAD m3/min - 50Hz   Dimensions (L x W x H)mm   Weight kg
RS45n 145 (10)   45 (60)   8.5 (302)   2433X1250X2032(95.8X49.2X80)   1304 (2875)
RS55n 145 (10)   55 (75)   11.2 (397)   2433X1250X2032(95.8X49.2X80)   1700 (3748)
RS75n 145 (10)   75 (100)   14.9 (531)   2433X1250X2032(95.8X49.2X80)   1726 (3805)
RS45n TAS 138 (9.5)   45 (60)   8.5 (302)   2433X1250X2032(95.8X49.2X80)   1457 (3212)
RS55n TAS 138 (9.5)   55 (75)   11.2 (397)   2433X1250X2032(95.8X49.2X80)   1853 (4085)
RS75n TAS 138 (9.5)   75 (100)   14.9 (531)   2433X1250X2032(95.8X49.2X80)   1879 (4142)
RS45nx 145 (10)   45 (60)   7.6 (268)   1947X1152X1609(76.7X45.4X63.3)   1060 (2337)
RS45nx TAS 138 (9.5)   45 (60)   7.6 (268)   1947X1152X1609(76.7X45.4X63.3)   1156 (2549)




Next Gen R-Series 45kW Oil-Flooded Rotary Screw Compressor 0

  • 1.Q: Are you a manufacturer or trading company?

    A: We are a professional Ingersoll Rand agent in China and also we produce air compressor in OEM and ODM service

    2.Q: How long is the warranty?

    A: Our officially promised warranty time is 1year from the date of delivery.

    3.Q: Do you provide 0DM/0EM or customized service?

    A: We're professional air compressor factory OEM/ODM are available based on your requirements.

    In order to support different customers. we are able to supply:

    1),reciprocating air compressors

  • 2),oil-flooded air compressors

    3),oil-free air compressors

    4), centrifugal air compressors

  • 4.Q: What certifications you have?

    A: We have ISO certifications.

    5.Q: What's the MOQ?

    A: The MOQ is 1pcs.

    6.Q: When will you delivery?

    A: Usually it takes 15-20 days after receiving the payment.
