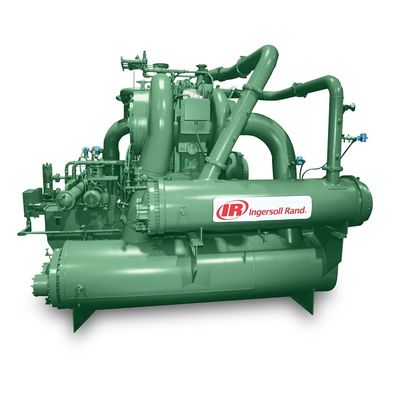

Green Steel Gas Compressor Centrifugal , 4100KW Industrial Centrifugal Compressor

Green Steel Gas Compressor Centrifugal , 4100KW Industrial Centrifugal Compressor

Green Steel Gas Compressor Centrifugal , 4100KW Industrial Centrifugal Compressor
Green Steel Gas Compressor Centrifugal , 4100KW Industrial Centrifugal Compressor

Large Image :  Green Steel Gas Compressor Centrifugal , 4100KW Industrial Centrifugal Compressor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ingersoll Rand
Certification: iso8573
Model Number: TURBO-AIR® 20000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: as Ingersoll Rand standard
Delivery Time: 7-30 days
Payment Terms: T/T, Western Union
Supply Ability: 100set/ month
Detailed Product Description
Material: Steel Color: Green
Voltage: Customer's Requirement Type: Rotary
Lubrication Style: Lubricated Configuration: Stationary
High Light:

Green Gas Compressor Centrifugal

,

Steel Gas Compressor Centrifugal

,

4100KW Industrial Centrifugal Compressor

Products description:MSG® TURBO-AIR® 20000 Centrifugal Air & Gas Compressor



The MSG TURBO-AIR 20000 is a custom-engineered centrifugal compressor built for individual customer needs for a variety of applications. It is particularly well-suited for multi-stage, dual-process applications.



Products Features:



MSG® TURBO-AIR® INTEGRALLY GEARED CENTRIFUGAL COMPRESSORS

MSG TURBO-AIR compressors offer outstanding design flexibility. MSG compressors are application engineered with numerous available configurations:

  • Flows from 70 to 3800 m3/min (2500 to 135,000 CFM)
  • Input capacity to over 18,650 kW (25,000 hp)
  • Discharge pressures to 100 barg (1450 psig)

Oil-Free Air and Gas

  • Prevents system contamination
  • Reduces the potential for compressed air pipeline fires caused by oil carryover
  • No costly waste disposal associated with oil-laden condensate
  • Eliminates the expense and maintenance of oil separation filters at the discharge

High Reliability

MSG TURBO-AIR centrifugal compressors are designed to be extremely

reliable due to:

  • Conservative high-quality gear design
  • Long-life pinion bearing design
  • Thrust loads absorbed at low speed
  • Stainless steel compression elements

Low Compressor Operating Life Cycle Cost

MSG TURBO-AIR centrifugal compressors provide better overall operating efficiency than positive displacement or other centrifugal compressors.



  • Excellent efficiencies at full load, part load and no load
  • Low maintenance cost
  • Increased uptime from high-reliability design (limits the need for multiple unit installations for basic reliability reasons)
  • No sliding or rubbing parts in the compression process that can cause wear and thereby efficiency loss
  • Specification Metric Imperial
    Standard Input Power up to 4100 kW up to 5500 hp

    Discharge Pressure up to 80 barg up to 1160 psig

    Inlet Flow 515-700 m3/min 18200-24,750 CFM

    Weight 5543 kg 12000lb

Green Steel Gas Compressor Centrifugal , 4100KW Industrial Centrifugal Compressor 0

  • FAQ:



    1.Q: Are you a manufacturer or trading company?

    A: We are a professional Ingersoll Rand agent in China and also we produce air compressor in OEM and ODM service

    2.Q: How long is the warranty?

    A: Our officially promised warranty time is 1year from the date of delivery.

    3.Q: Do you provide 0DM/0EM or customized service?

    A: We're professional air compressor factory OEM/ODM are available based on your requirements.

    In order to support different customers. we are able to supply:

    1),reciprocating air compressors

  • 2),oil-flooded air compressors

    3),oil-free air compressors

    4), centrifugal air compressors

  • 4.Q: What certifications you have?

    A: We have ISO certifications.

    5.Q: What's the MOQ?

    A: The MOQ is 1pcs.

    6.Q: When will you delivery?

    A: Usually it takes 15-20 days after receiving the payment.
