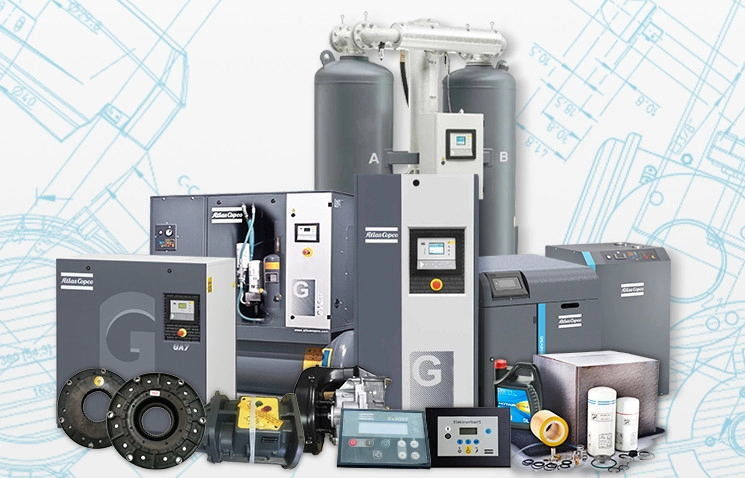

Multipurpose Low Pressure Compressor , 37KW Oil Injected Screw Air Compressor

Atlas Copco Ga Vsd+37 Oil-Injected Rotary Screw Air Compressor

specifications

Why Atlas Copco Variable Speed Drive + technology?
• On average 50% energy savings with an extensive flow range (20-100%).
• Integrated Elektronikon ® Touch controller controls the motor speed and high-efficiency frequency inverter.
• No wasted idling times or blow-off losses during operation.
• Compressor can start/stop under full system pressure without the need to unload.
• Eliminates peak current penalty during start-up.
• Minimizes system leakage due to a lower system pressure.
• EMC compliance to directives (2004/108/EG).
* Compared to fixed speed compressors, based on measurement performed by an independent energy audit agency.

The New Revolutionary Compressor From Atlas Copco GA90 VSD+
Innovative
Atlas Copco has revolutionized compressor build and performance. Instead of the normalspace-taking horizontal design, the new
GA 37-110 VSD + has an upright, compact layout. This saves valuable floor and work space, eases maintenance access, and reduces the total cost of ownership for all customers.

Reliable
• Our Neos inverter, developed in-house to maximize compressor reliability, is built to provide extra protection against dust and other particles.
• Completely enclosed frequency drive and drive train ensure performance even in the harshest environments.
• Based on the unique combination of proven technologies and existing components, optimally brought together by Atlas Copco’s experience and know-how.

Smart
• Easy monitoring and maintenance thanks to the Elektronikon ® Touch controller.
• Maintenance notifications and machine status are available via SMARTLINK e-mail or text messages.
• Customized reports on the energy performance of your machine, in compliance with ISO 50001.

1
Interior Permanent Magnet (iPM) motor
• Oil-cooled motor.
• Optimal cooling for all speeds and ambient conditions.
• Designed in-house in Belgium.
• Oil-lubricated motor bearing: no (re)grease(ing), increased
uptime.
• IP66: pressure tight.
• Permanent magnets.
2
New compressor element
• New improved rotor profile.
• Reduced pressure losses.
• Optimized in and outlet portals.
3
Direct drive
• Vertical design, less parts.
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.
4
Inlet filter
• Heavy duty.
• Maintenance every 4,000 hours.
• Pressure drop indicator.
5
Radial fan
• Compact.
• Low noise level.
• High capacity for optimized cooling.
6
Classic cooler design
• Integrated water separation.
• Separate oil/air cooler.
• Easy access for maintenance.
7
Innovative Neos inverter
• Atlas Copco’s in-house designed inverter now also controls iPM motors.
• IP5x protection.
• Robust aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and user-friendly.
8
Integrated dryer
• Extra compact footprint.
• Refrigerant R410A.
9
Elektronikon ®
Touch controller
• High-tech controller with warning indications, compressor shut-down and maintenance scheduling.
• Easy to use and designed to perform in the toughest conditions.
• Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
• Optional multiple compressor control (2, 4 or 6 compressors).
10
Sentinel valve
• Optimizes the inlet flow of the air end.
• No blow-off losses.
• Full aluminum design: maintenance-free.
11
VSD + Neos cubicle
• VSD + is superior to idling machines.
• Electrical components remain cool, enhancing their lifetime.
• Dedicated drive for iPM technology motors.
• Heat dissipation of inverter in separate compartment.
