Flexible Remote Control Side Channel Blowers , 75KW Oil Injected Air Compressor

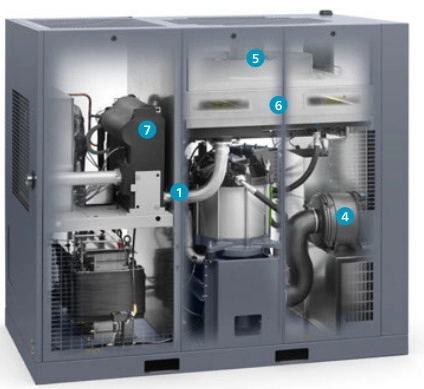

GA 75 Premium Compressor

• High performance Free Air Delivery.
• Premium quality at the lowest initial investment.
• Integrated refrigerant dryer.
• Standard Elektronikon ® controller (optional Touch controller).

(A)

Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD + filter according to Class 1.4.2.

(B)

NEOS drive
• Atlas Copco’s in-house designed inverter for GA VSD compressors.
• IP5X protection degree.
• A robust, aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and user-friendly.

(C)

Cubicle cooling booster
• Cubicle in overpressure minimizes ingress of conductive dust.
• Electrical components remain cool, enhancing lifetime of components.

(D)

Elektronikon ® for remote monitoring
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.

(E)

Heavy-duty air intake filter
• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.

Advanced Elektronikon ® Touch controller
• Improved user-friendliness: 4.3-inch high-definition color display with clear pictograms and service indicator.
• Internet-based compressor visualization using a simple Ethernet connection.
• Increased reliability: new, user-friendly, multilingual user interface.

Key features:
• Automatic restart after voltage failure.
• Built-in SMARTLINK online monitoring.
• Dual pressure set point.
• More flexibility: four different week schedules that can be programmed for a period of 10 consecutive weeks.
• On-screen Delayed Second Stop function and VSD savings indication.
• Graphical service plan indication.
• Remote control and connectivity functions.
• Software upgrade available to control up to 6 compressors by installing the optional integrated compressor controller.

VSD: Driving down your energy costs
Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco pioneered Variable Speed Drive (VSD) technology in the compressed air industry. VSD leads
to major energy savings, while protecting the environment for future generations. Thanks to continual
investments in this technology, Atlas Copco offers the widest range of integrated VSD compressors on
the market.

Why Atlas Copco Variable Speed Drive technology?
• On average 35% energy savings during fluctuations in production demand with an extensive turndown range.
• Integrated Elektronikon Touch controller controls the motor speed and high efficiency frequency inverter.
• No wasted idling times or blow-off losses in normal operation.
• Compressor can start/stop under full system pressure without the need to unload with special VSD motor.
• Eliminates peak current penalty during start-up.
• Minimizes system leakage due to a lower system pressure.
• EMC Compliance to directives (2004/108/EG).

In almost every production environment, air demand fluctuates depending on different factors such as the time of the day, week or even month. Extensive measurements and studies of compressed air demand profiles show that many compressors
have substantial variations in air demand. Only 8% of all installations have a more stable air demand.
