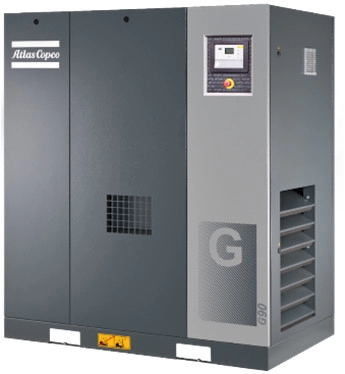

90KW Oil Injected Low Pressure Screw Compressor 7.5 Bar G90 Model

90KW Oil Injected Low Pressure Screw Compressor 7.5 Bar G90 Model

90KW Oil Injected Low Pressure Screw Compressor 7.5 Bar G90 Model
90KW Oil Injected Low Pressure Screw Compressor 7.5 Bar G90 Model

Large Image :  90KW Oil Injected Low Pressure Screw Compressor 7.5 Bar G90 Model Get Best Price

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: G90
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: negotiable
Packaging Details: as atlas corp standard
Delivery Time: 7-30 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per month
Detailed Product Description
Machine Type: Oil Injected Screw Air Compressor Model: G90
Motor: IE3 Premium Motor Noise Level: 73dB
Motor Power: 90kw Working Pressure: 7.5~13 Bar
High Light:

90KW Low Pressure Screw Compressor

,

Oil Injected Low Pressure Screw Compressor

,

7.5 Bar Oil Injected Screw Compressor

ATLAS COPCO 90KW OIL-INJECTED ROTARY SCREW AIR COMPRESSORS G90





High Reliability And Smart Energy
The ultimate smart solution, driven by efficiency. Atlas Copco’s G90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. Built to perform even in the harshest environments, these compressors keep your production running efficiently.



Maintenance-free drive system
•100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46˚C/115˚F and for high ambient version 55˚C/131˚F.
Atlas Copco 90kw Oil Injected Rotary Screw Compressor G90 7.5bar Working Pressure 0
IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Designed for continuous operation in harsh environments.

Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a conventional filter.
• Integrated bypass valve with the oil filter.



SIL Smart inlet lock system for GA VSD compressors
• Superior designed vacuum and air pressure controlled valve with minimal pressure drop and no springs.
• Smart stop/start which eliminates back-pressure oil vapor.

Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime.
• Removal of nearly 100% condensate by integrated mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.

Specifications

COMPRESSOR
TYPE
Pressure
variant
(bar)
Max. working pressure
WorkPlace
Capacity FAD* Installed motor power Noise
level**
Weight
WorkPlace
Weight WorkPlace
Full Feature
bar(e) psig l/s m³/min cfm kw dB(A) kg kg
G90 7.5 7.5 109 281 16.9 596 90 73 1525 1645
8.5 8.5 123 275 16.5 582 90 73 1525 1645
10 10 145 250 15 529 90 73 1525 1645
13 13 189 216 13 458 90 73 1525 1645



  • 1.Q: Are you a manufacturer or trading company?

    A: We are a professional Ingersoll Rand agent in China and also we produce air compressor in OEM and ODM service

    2.Q: How long is the warranty?

    A: Our officially promised warranty time is 1year from the date of delivery.

    3.Q: Do you provide 0DM/0EM or customized service?

    A: We're professional air compressor factory OEM/ODM are available based on your requirements.

    In order to support different customers. we are able to supply:

    1),reciprocating air compressors

  • 2),oil-flooded air compressors

    3),oil-free air compressors

    4), centrifugal air compressors

  • 4.Q: What certifications you have?

    A: We have ISO certifications.

    5.Q: What's the MOQ?

    A: The MOQ is 1pcs.

    6.Q: When will you delivery?

    A: Usually it takes 15-20 days after receiving the payment.
