| Material:: | Aluminum Alloy | Model:: | QDT Series |
|---|---|---|---|
| Brand:: | Atlas Copco | Type:: | Activated Carbon Towers |
| Nominal Capacity:: | 20~1800 L/s | Compressed Air Flow:: | 120 L/s |
| High Light: | ISO 8573 Air Compressor Parts,Multipurpose Air Compressor Parts,1800 L/S Activated Carbon Tower |
||

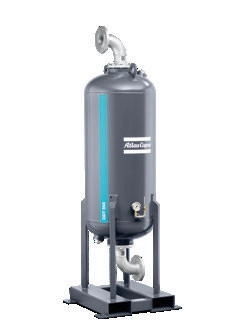

Atlas Copco Qdt Series Compressed Air Filters Activated Carbon Towers For Optimal Oil Vapor Filtration
Activated Carbon Towers For Optimal Oil Vapor Filtration
The high efficiency activated carbon tower is capable of removing hydrocarbons, odors and oil vapor from compressed air. The activated carbon will, by the use of adsorption, reduce the residual oil content to lower than 0.003 mg/m³. The pressure drop is low and stays minimal during the filter’s lifetime.
YOUR BENEFITS
Maximum oil vapor removal
Superb activated carbon material.
Low pressure drop
Optimal internal flow path.
High reliability
Robust design and optimal filter material.
Example
• Working temperature 50°C, pressure 12 bar(g), compressed air flow 120 l/s.
• Multiply the nominal capacity of the selected filter with the corresponding correction factors
at the required working temperature and pressure to obtain the capacity at operating condition
- QDT 150: 150l/s * 0.59 * 1.11 = 98l/s => A QDT 150 filter is not large enough
- QDT 195: 195l/s * 0.59 * 1.11 = 128l/s => A QDT 195 filter is the correct size
Options
• Oil indicator ensures pure air.
• Wall mounting kit for easy installation (20 – 185 l/s).
Certification
• ISO 8573-4:2001
• ISO 12500-3:2009
