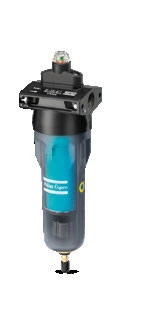

Anticorrosive Air Compressor Air Filter , 8000l/S Compressor Desiccant Filter DDp+

DDp+ PDp+Compressed Air Filters , Desiccant Filter For Air Compressor 8000l/S Capacity

Optimal Dry Dust Filtration

DDp(+) and PDp(+) filters efficiently prevent dust, particulates and micro-organisms arising from corrosion, dirt and adsorption material from entering your compressed air stream. These innovative filtration solutions are engineered to cost-effectively providethe best air purity and meet today’s increasing quality demands.

YOUR BENEFITS

Maximum dirt, solid particles, micro-organisms and rust particles removal

High-efficient glass fiber and foam media.

Significant energy savings & limited system operating costs

Optimal design and filter media allow for low pressure losses.

High reliability

High-performance stainless steel cores, double O-rings, epoxy sealed caps, and anti-corrosive coated filter housing.

Easy maintenance

External ribs on the threaded housing, or a rotating bottom cover for the welded housings, and push-on elements.

Monitoring of energy use

Differential pressure indication (indicator for sizes 10-35 l/s, gauge for sizes 45-8000 l/s) (optional for standard range).

Example

• Working pressure 3 bar(g), compressed air flow 35 l/s.

• Multiply the nominal capacity of the selected filter with the corresponding correction

factor at the required working pressure to obtain the capacity at working pressure:

- Size 50+: 50 l/s * 0.65 = 33 l/s => the 50+ filter size is not large enough.

Options

• Filter connection kit for easy mounting in series (10+ - 550+ l/s and 12-690 l/s).

• Wall-mounting kit simplifies installation (10+ - 550+ l/s and 12-690 l/s).

• Voltage-free contact mounted in the differential pressure gauge, to give remote indication of cartridge replacement.

Certification
• ISO 8573-4:2001

• ISO 12500-3:2009
