Product Details:
Payment & Shipping Terms:
|
| Material:: | Aluminum Alloy | Model:: | GA 75 |
|---|---|---|---|
| Power:: | 75kw | Brand:: | Atlas Copco |
| Type:: | Oil-injected | System:: | SIL Smart Inlet Lock System |
| High Light: | ISO 8573-2 Side Channel Blowers,75KW Side Channel Blowers,Atlas Copco GA 75 |
||

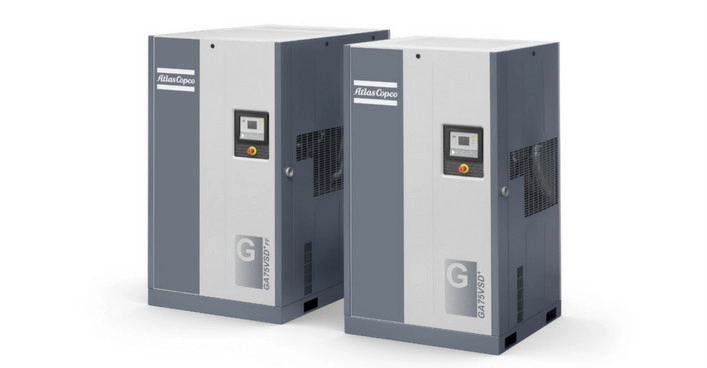

GA 75 50Hz Air Compressor
The ultimate smart solution, driven by efficiency
Atlas Copco’s GA 30+-90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
SPECIFICATIONS
|
COMPRESSOR TYPE |
Pressure variant |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** | Weight WorkPlace |
Weight WorkPlace Full Feature |
||||||
| bar(e) | psig | l/s | m³/min | cfm | kW | hp | dB(A) | kg | lbs | kg | lbs | ||
| GA 75 | 7.5 | 7.5 | 109 | 226 | 13.6 | 478 | 75 | 100 | 73 | 1371 | 3016 | 1491 | 3280 |
| 8.5 | 8.5 | 123 | 209 | 12.5 | 444 | 75 | 100 | 73 | 1371 | 3016 | 1491 | 3280 | |
| 10.5 | 10.5 | 145 | 190 | 11.4 | 401 | 75 | 100 | 73 | 1371 | 3016 | 1491 | 3280 | |
| 13 | 13 | 189 | 162 | 9.7 | 344 | 75 | 100 | 73 | 1371 | 3016 | 1491 | 3280 | |
Why dry your compressed air?
Untreated compressed air contains moisture, aerosols and dirt particles that can damage your air system and contaminate your end product, resulting in risk of corrosion and compressed air system leaks. Maintenance costs can far exceed air treatment costs. An air dryer is therefore essential to protect your systems and processes. The GA, GA+ and GA VSD compressors have an integrated dryer option to secure your peace of mind.
Integrated dry air
• Optimized sizing for the compressor, avoiding excessive energy consumption. • Fit for your application.
• Controlled and monitored by the Elektronikon®.
• Space-saving all-in-one solution with low installation costs.
WorkPlace:
Compressed air at the point of use
With the industry-leading low noise operation and integration of air and condensate treatment equipment, the GA+ offers complete versatility for your production. The compressor’s integrated design allows it to be placed on the production floor, creating substantial energy savings for
your business.
