7.5 m³/min Portable Screw Air Compressor 2400 r/min For Road Construction

China 7.5 m³/min Portable Screw Air Compressor 2400 r/min For Road Construction supplier

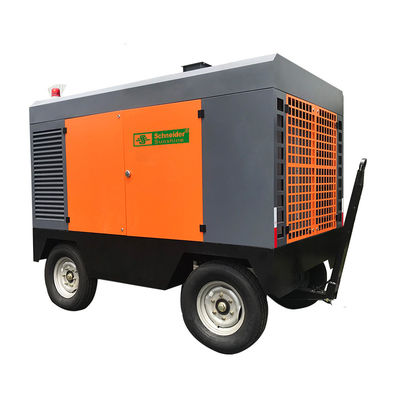

Large Image :  7.5 m³/min Portable Screw Air Compressor 2400 r/min For Road Construction

Product Details:

Place of Origin: Shanghai, China
Brand Name: Schneider Sunshine
Certification: ISO9001
Model Number: SRC-7.5/7CYSA

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Wooden case, Carton
Delivery Time: In 30 days after get the value
Payment Terms: T/T, L/C, D/P
Supply Ability: 300PCS/month
Contact Now
Detailed Product Description
Air Capacity: 7.5m³/min Discharge Pressure: 7bar
Motor Power: 58kw Speed: 2400r/min
Total Weight: 1800kg Dimension (L*W*H): 3400mm*1785mm*1700mm

58KW Portable Screw Air Compressor 7.5m³/min 7bar 2400r/min Road Construction

Application field


mining, tunnel, railway, highway,

bridge construction, municipal construction

and geological exploration industry


◆ Characteristics of Mobile Screw Air Compressor
According to the different powers, the famous engine is carefully matched to achieve the best combination of performance; ultra-low vibration technology, unique noise control system makes noise smaller and lower; simple operation, clear operation state, convenient maintenance, fast.
1. High reliability: Compressor has few parts and no vulnerable parts, so it runs reliably and has a long service life. The interval of overhaul can reach 40,000 to 80,000 hours.
2. Easy operation and maintenance: high degree of automation, operators do not need to undergo long professional training, can achieve unattended operation;
3. Good dynamic balance: without unbalanced inertia force, it can run smoothly at high speed and without foundation. It is especially suitable for use as a mobile compressor with small volume, light weight and less floor area.
4. Strong adaptability: with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, and can maintain high efficiency in a wide range of speed.
◆ Application Field of Air Compressor
Widely used in highway, railway, mining, water conservancy, shipbuilding, urban construction, energy, military and other industries
1. power transmission engine
◆ No any intermedias, no nergy loss.
◆ Bigger rotary screwers, higher efficiency and more energy-saving
◆ No belt, no troubles caused by belts such as power imbalance, heat, fragile, and not easy to change.
◆ Directly driven by motor through jaw resilient coupling,which leads to power balance, lower shocking, lower maintenance cost.
2. Centrigugal fan with External rotors
Double centrifugal fans with compact,high efficient, more CFM and enery-saving,design.
Adopt oil-gas seperator with element core built in to ensure oil content less than 3ppm.
◆ new designed air inlet system which has less noise,energy-saving and easy to maintenance.
Specification parameters

Specifacation Air Capacity
Discharge Pressure
Type of Diesel Engine Motor Power
Total Weight
SRC-5.2/7CYSA 5.2 7 YCD4B22G-G1 46 2200 1500 2960*1475*1425
SRC-7.5/7CYSA 7.5 7 YC4D80-K10 58 2400 1800 3400*1785*1700
SRC-10/7CYSA 10 7 YC4B105Z-711 75 2200 1800 3600*1800*1700
SRC-10/10CYSA 10 10 4BTA3.9-C125 93 2200 2200 3600*1960*1800
SRC-12/7CYSA 12 7 4BTA3.9-C125 93 2200 2200 3600*1960*1800
SRC-12/10CYSA 12 10 YC6B150Z-K20 110 2200 2600 3600*1960*1800
SRC-10/13CYSA 10 13 YC6B150Z-K20 110 2200 2600 3600*1960*1800
SRC-12/13CYSA 12 13 6BTA5.9-C180 132 2500 3300 3480*1700*2240
SRC-15/10CYSA 15 10 6BTA5.9-C180 132 2200 3500 3480*1700*2240
SRC-17/8CYSA 17 8 6BTA5.9-C180 132 2500 3500 3480*1700*2240
SRC-15/13CYSA 15 13 WD415.23 160 2200 3500 3300*1750*2500
SRC-22/8CYSA 22 8 6TA8.3-C260 194 2200 5000 4000*1900*2330
SRC-21/13CYSA 21 13 6LTAA8.9-C325 239 2200 5000 4300*2000*2800

⊙ why choose us

7.5 m³/min Portable Screw Air Compressor 2400 r/min For Road Construction7.5 m³/min Portable Screw Air Compressor 2400 r/min For Road Construction

From the two pictures above, we can find the electric consumption of air compressor is about a quarter of the whole factory, and the electric charge is also the major cost in the air compressor total cost, far more than the Equipment Investment and Maintenance Cost. So before you choose one compressor, electric consumption should be considered first. Schneider-Sunshine screw air compressor adopts Germany DOS.DS technology. All the compressors are direct connection, more balance and stable in running. Innovative design with a copper motor makes the power loss lessened by 40%.
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in
No. 53 Hufan Road, 9088 Hutai Road, Baoshan District, Shanghai, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course.
380V 50HZ, The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: We can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
